ENERGY METER - 60 Amps

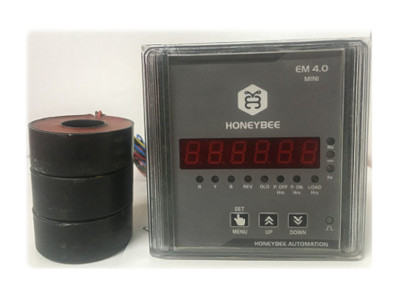

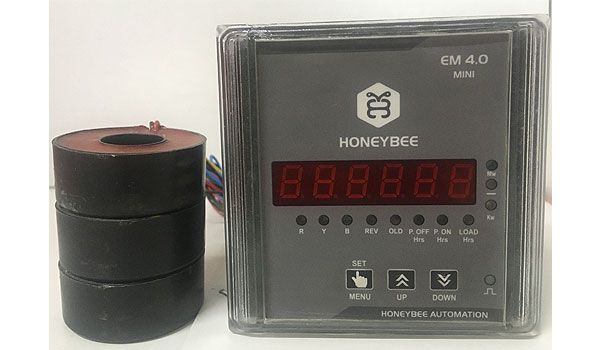

Energy meter 60A with Single Row
NIAGARA -TEXTILE AUTOMATION
Features
- Universal Auxiliary (80V AC/DC-300 VAC/DC) supply with fluctuations.
- PT ratio / CT ratio programmable including CT secondary.
- “OLD” Register for storing Cleared Energy and Load hours.
- 6 digit 1 Rows LED display.
- Universal Voltage Input: 50 - 550 VAC (for UL 50 - 520 VAC) Line-Line with fluctuations.
- Current Secondary Input (0.05A to 60A).
- User configurable (Editable) password.
- Compact size and Weight.
- Dynamic communication.
- True RMS measurements.
- Simultaneous sampling of volts & amps.
- Best parameters grouping /bright displays.
- High/ low V, A, Hz, W, VA, VAr, PF value storage.
- Auto-scaling of kilo, mega & giga decimal point.
- RS 485 – MODBUS communication to conduct group network management and achieve automatic control.
Technical Specifications
| PARAMETERS | RANGE |
|---|---|
| AUXILIARY SUPPLY | 80V AC/DC - 300 VAC/DC |
| INPUT : VOLTAGE CURRENT |
50 - 550 VAC (for UL 50 - 520 VAC) 0.05A to 60A |
| FREQUENCY | 45Hz – 65Hz |
| COMMUNICATION | RS 485 – Modbus communication facility with computer |
| DISPLAY | 6 digit 1 Rows LED display |
| ACCURACY | Class 0.5 / 1.0 |
| OVER ALL DIMENSION | 96 x 96 mm - Depth 45mm behind bezel |
| PANEL CUTOUT | 92+0-2 X 92+0-2 mm |

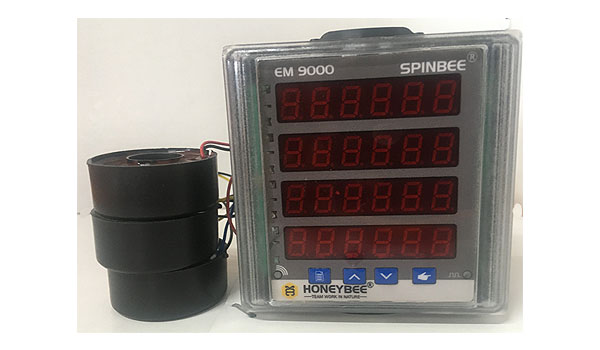

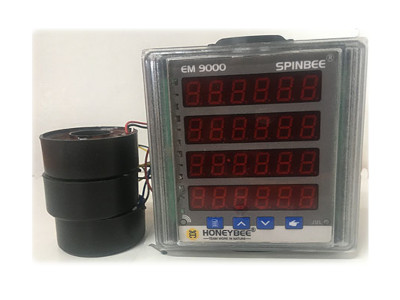

Energy meter 60A with Four Row
NIAGARA -TEXTILE AUTOMATION
Features
- Universal Auxiliary (80V AC/DC-300 VAC/DC) supply with fluctuations.
- PT ratio / CT ratio programmable including CT secondary.
- “OLD” Register for storing Cleared Energy and Load hours.
- 6 digit 4 Rows LED display.
- Universal Voltage Input: 50 - 550 VAC (for UL 50 - 520 VAC) Line-Line with fluctuations.
- Current Secondary Input (0.05A to 60A).
- User configurable (Editable) password.
- Compact size and Weight.
- Dynamic communication.
- True RMS measurements.
- Simultaneous sampling of volts & amps.
- Best parameters grouping /bright displays.
- High/ low V, A, Hz, W, VA, VAr, PF value storage.
- Auto-scaling of kilo, mega & giga decimal point.
- RS 485 – MODBUS communication to conduct group network management and achieve automatic control.
Technical Specifications
| PARAMETERS | RANGE |
|---|---|
| AUXILIARY SUPPLY | 80V AC/DC - 300 VAC/DC |
| INPUT : VOLTAGE CURRENT |
50 - 550 VAC (for UL 50 - 520 VAC) 0.05A to 60A |
| FREQUENCY | 45Hz – 65Hz |
| COMMUNICATION | RS 485 – Modbus communication facility with computer |
| DISPLAY | 6 digit 4 Rows LED display |
| ACCURACY | Class 0.5 / 1.0 |
| OVER ALL DIMENSION | 96 x 96 mm - Depth 45mm behind bezel |
| PANEL CUTOUT | 92+0-2 X 92+0-2 mm |
